PostSubject: jafo's work vehicle   jafo's work vehicle Icon_minitimeTue 25 Sep 2012, 11:25 am

my new work vehicle

cost $128,000
make Hubtex
model MD 30
type side lift
power 24 volt
max speed 8kmh
4 wheel steering














ok so by now your thinking WTF,
it's a forklift we just had delivered and my new toy at work.
i took some photos and will explain what everything does under each one
so here we go









jafo's work vehicle 013-3

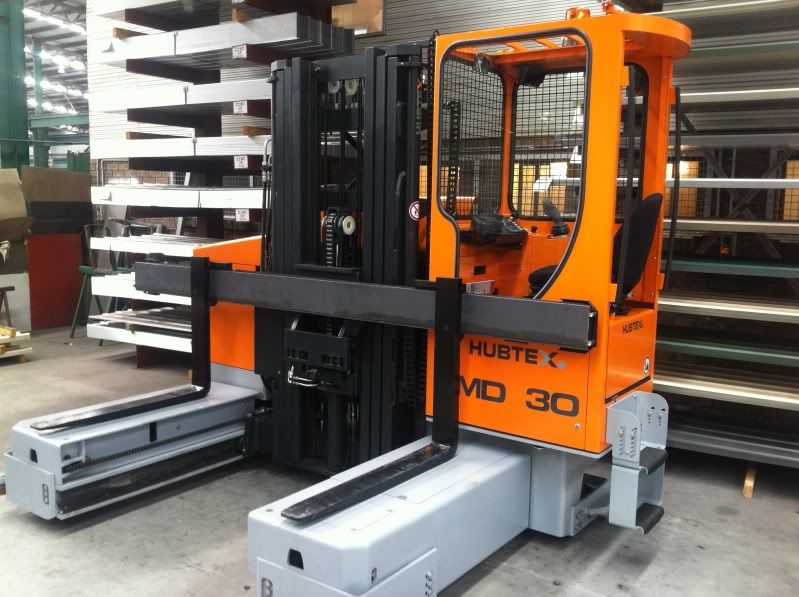

this is what it looks like

jafo's work vehicle 002-2

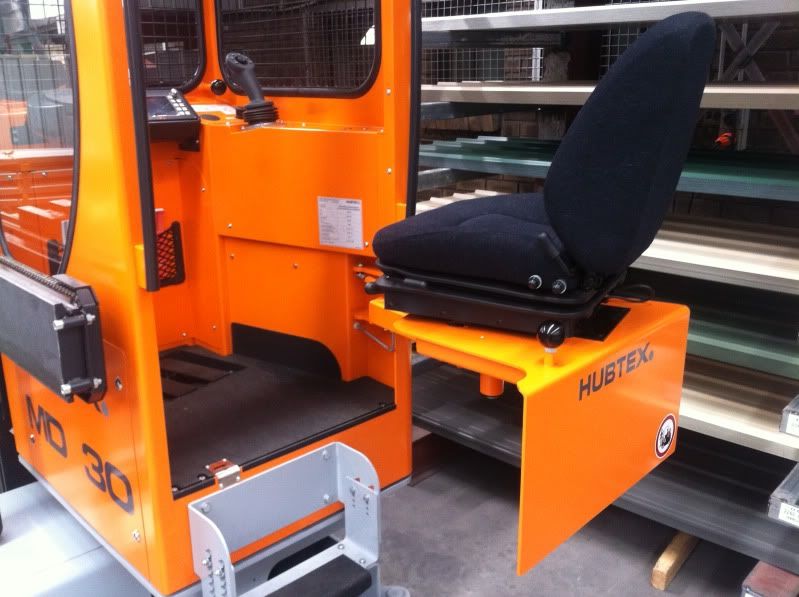

this is how you get in and out seat is on a pivot with locking device and pressure sensor so if your not on the seat and its not locked in place all power is disconnected to wheels and lifting mechanism.

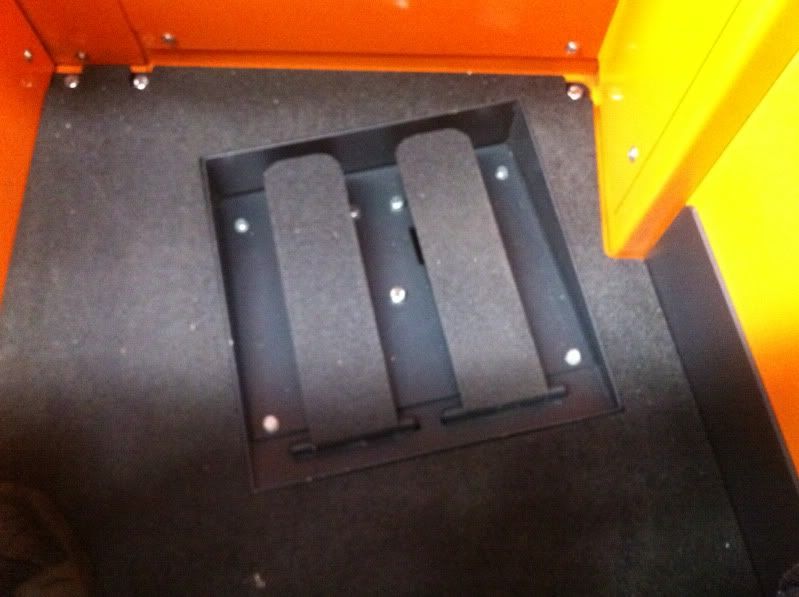

jafo's work vehicle 006-3
accelerator and brake pedals recessed into floor

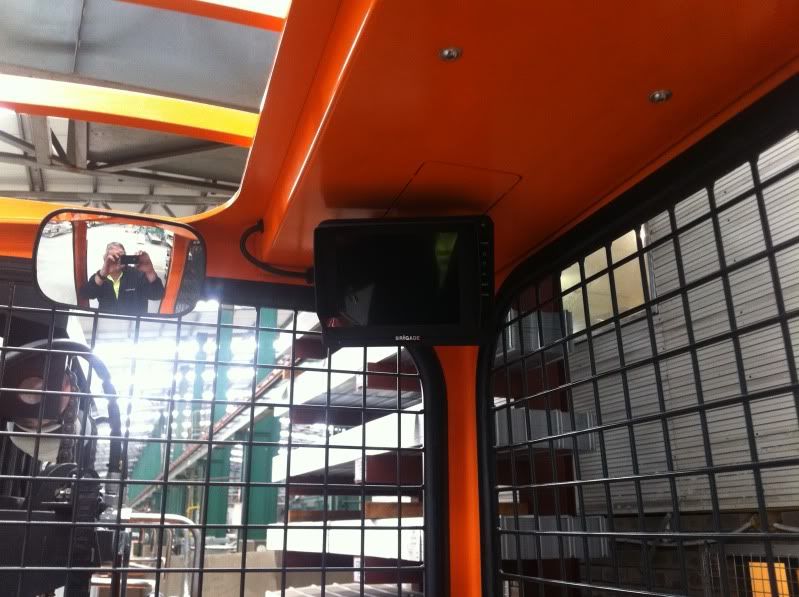

jafo's work vehicle 007-2
rearview mirror and camera monitor 2 cameras atm 3rd coming
as when you have a long load you cant see the end of it while driving forward

jafo's work vehicle 003-4

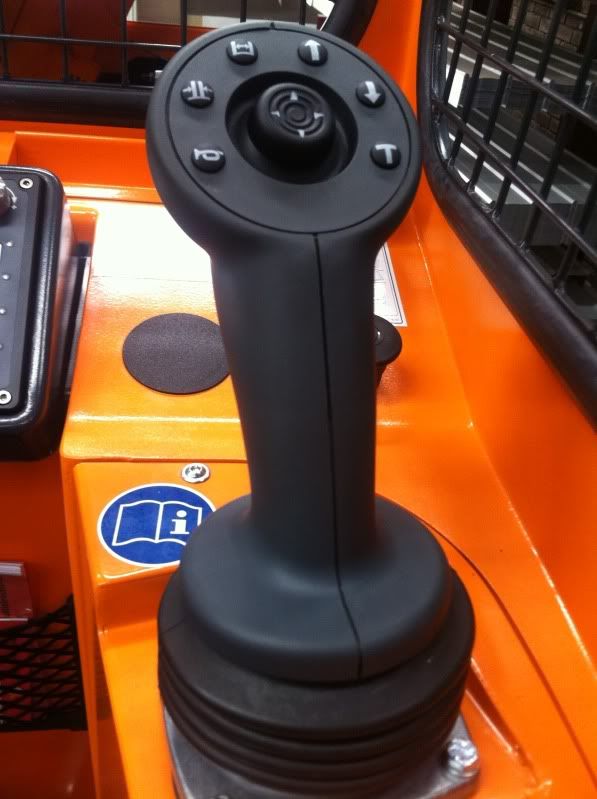

this is the joystick that controls the tines and mast and wheel direction
the buttons are horn/tines close/tines open/two arrows not used/T traction control/the button in the centre is your direction switch as well as the buttons on the dash monitor in next photo.

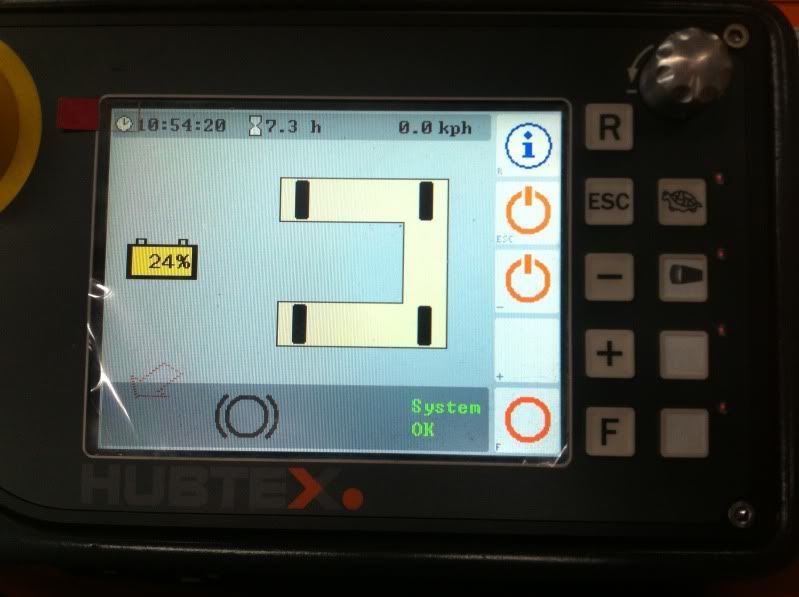

jafo's work vehicle 001-3
home screen
jafo's work vehicle 002-3

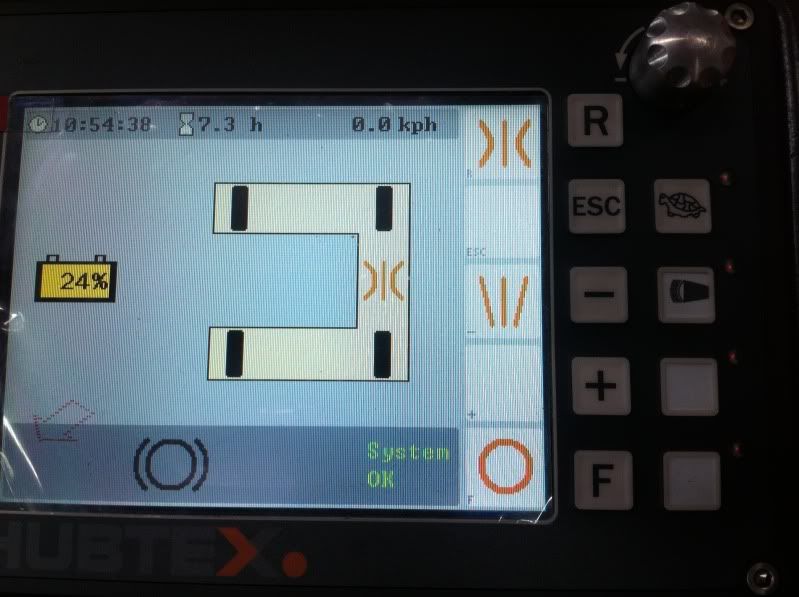

forward reverse
jafo's work vehicle 003-5

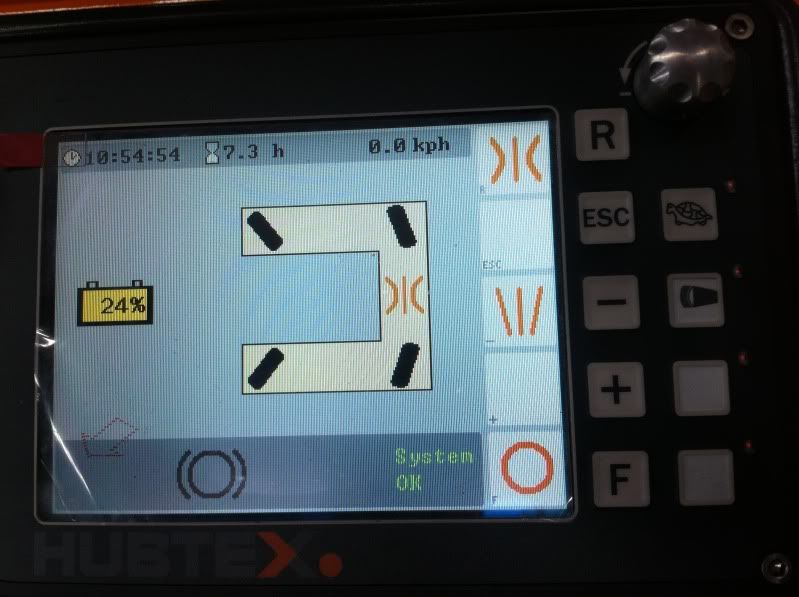

normal steering mode when wheels turn so do these on monitor
jafo's work vehicle 004-3

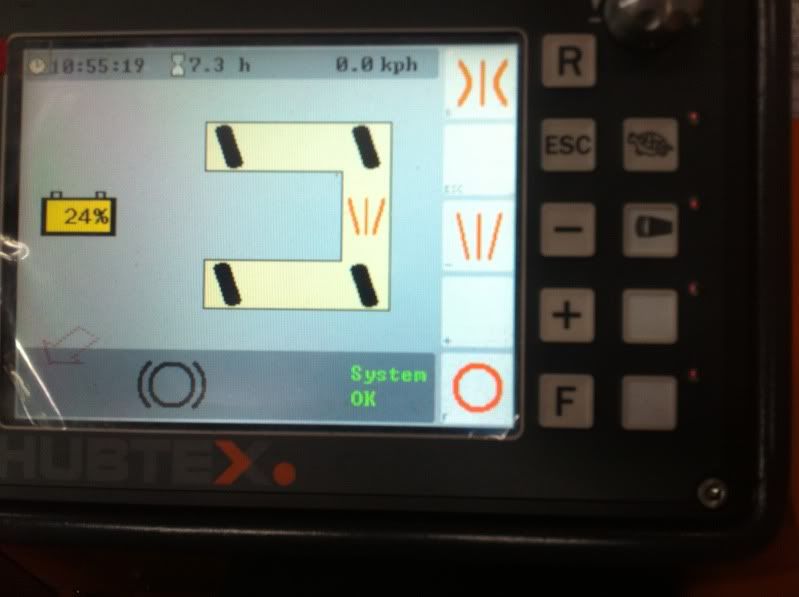

crab walk good for reversing away from racking and other things
jafo's work vehicle 005-4

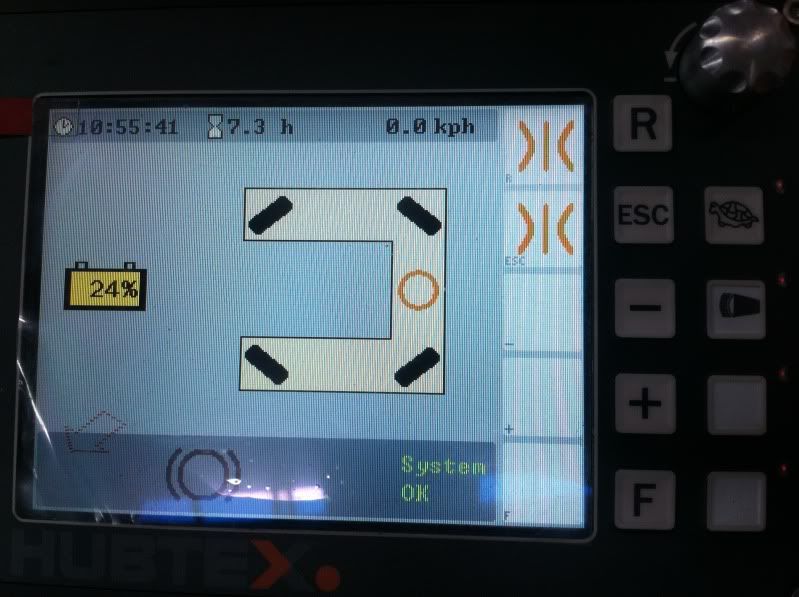

360 mode for turning on the spot

also has left and right motion but i forgot to take a photo of that

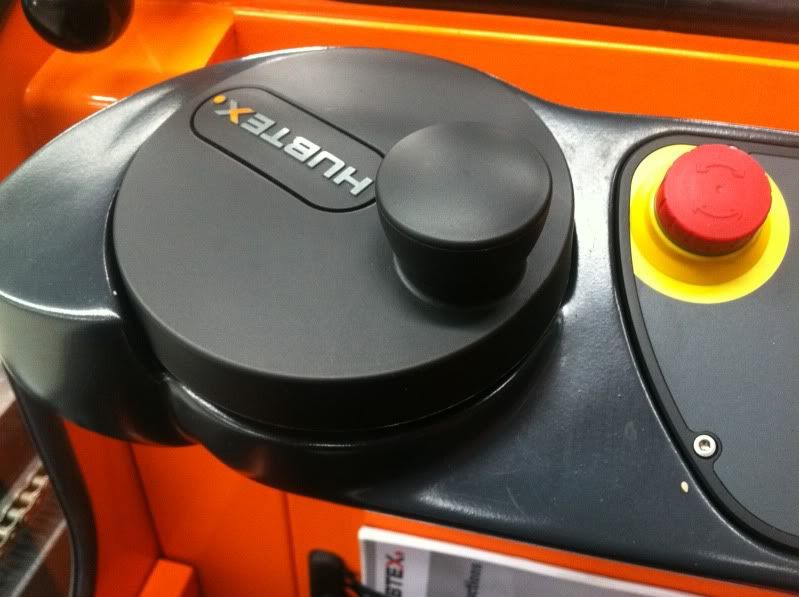

jafo's work vehicle 005-3
this is the steering wheel tiny little thing but very touchy

jafo's work vehicle 010-2

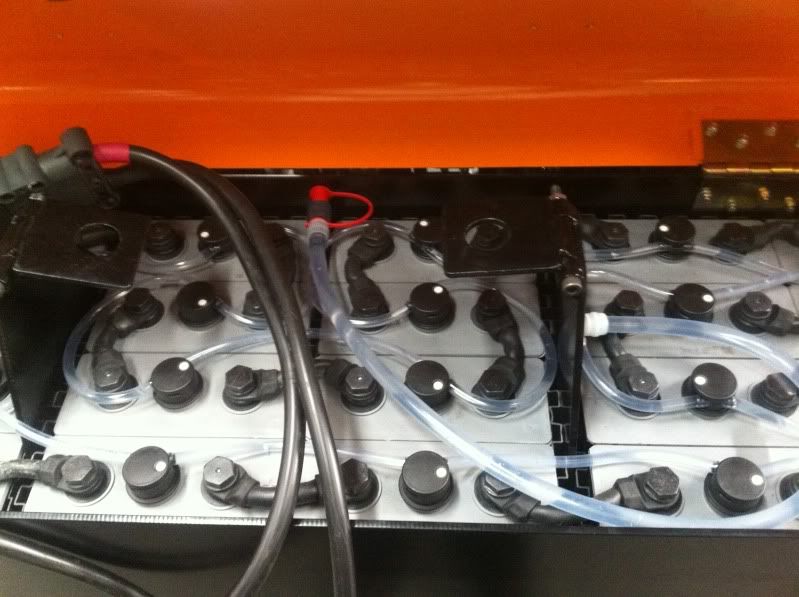

battery pack 24 volt all the tubing is to fill with fluid if a cell gets low just hook up the hose to the bottle of distilled water and auto fill takes over when the gauge stops spinning remove hose batteries are full simple really
all the caps with the white dots are the water level gauges if a cell is low the dot drops down and you know you need water.

if your wondering where the key is there isn't one it works on security code you need to punch into it before you drive it every driver has their own code
so far has only done 8 hours since new so still getting used to it but is great fun to drive.
Back to top Go down
ZombieVN

ZombieVN

Number of posts : 164
Age : 43
Location : 'Near' Parafield
Registration date : 2010-11-14

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeThu 27 Sep 2012, 2:06 pm

Ooooow. Fancy.


My work has OLD crown reach trucks. They rattle and vibrate that much you get a massage...







So, have you scratched it yet? Wink
Back to top Go down
jafo



Number of posts : 173
Registration date : 2009-06-06

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeThu 27 Sep 2012, 9:05 pm

ZombieVN wrote:


So, have you scratched it yet? Wink

not yet had it a week now all good
only scratches are on top of forks and feet from transporting material these can not be avoided
Back to top Go down
slug08
Club Member
slug08

Number of posts : 67
Age : 33
Location : Adelaide
Registration date : 2012-04-01

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeFri 28 Sep 2012, 4:43 am

Dose it have gps and collision sensors scratch … use to have them on a forklift I used at work, every time I would straighten a stack of pallets it would go off and the boss would run down to see what had been hit lol!
Back to top Go down
jafo



Number of posts : 173
Registration date : 2009-06-06

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeFri 28 Sep 2012, 7:43 am

slug08 wrote:
Dose it have gps and collision sensors scratch … use to have them on a forklift I used at work, every time I would straighten a stack of pallets it would go off and the boss would run down to see what had been hit lol!

no it dont have gps or collision sensors but it does log everything you do and how long it takes to do it Rolling Eyes


only just got its first full charge last night as the tool room kept switching the powerpoint of where it was plugged in took me a while to figure out why it wasnt charging at night Evil or Very Mad
Back to top Go down
Cliffholden

Cliffholden

Number of posts : 28
Registration date : 2012-08-10

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeWed 03 Oct 2012, 1:40 pm

Have to bring it out on the next cruise Very Happy
Back to top Go down
Cliffholden

Cliffholden

Number of posts : 28
Registration date : 2012-08-10

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeThu 09 Apr 2020, 7:03 am

Still have not seen it out on a cruise yet Dave LOL
Back to top Go down
jafo



Number of posts : 173
Registration date : 2009-06-06

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeThu 09 Apr 2020, 10:32 am

Holy shit cliff this was from 7 years ago
Back to top Go down
Cliffholden

Cliffholden

Number of posts : 28
Registration date : 2012-08-10

jafo's work vehicle Empty
PostSubject: Re: jafo's work vehicle   jafo's work vehicle Icon_minitimeFri 10 Apr 2020, 3:30 am

Yeah I know lol. I received a Newsletter from the site. Shocked the hell out of me ha ha. Think I should start the Club up again lol
